Description

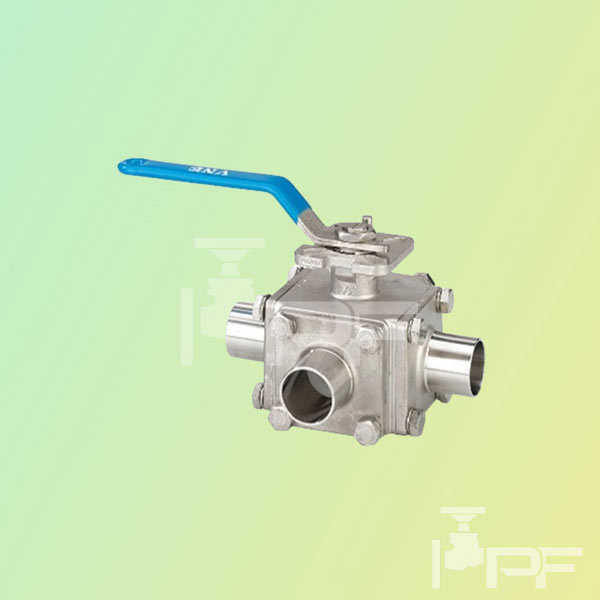

Description – 3-Way Diverter Steel Ball Valve with Butt Weld End
Material – SS304, SS316, Carbon Steel, Hastelloy
Gasket – PTFE, EPDM, Viton
Schedule – SCH 10, 20, 30, 40, 60, 80, 100, 120, 140, 160
Size Range – 1/2″, 1″, 1 1/2″, 2″, 2 1/2″, 3″, 4″, 6″, 8″
Application– Chemical Manufacturing, Food Equipment, Pharmaceutical, Petrochemical, Steel Manufacturing, Distilling, Food and Beverage, Pulp and Paper Processing, Power Generation, Marine, etc
Operating Type – Manual On/Off Valve with Lockable Handle
Interior Smoothness – 20Ra to 32ra
NOTE : User to verify the compatibility
The structure of the directional valve is composed of 1 valve body, 1 platform support and 4 side valve covers combined with fixed ball core. The ball core is connected by the valve rod, and the axis can be rotated 90 degrees to realize the function of opening and closing. It is mainly used for pipeline switch, pipeline shunt, and can also design ball core X-shaped opening to achieve medium reversing function.
