Description

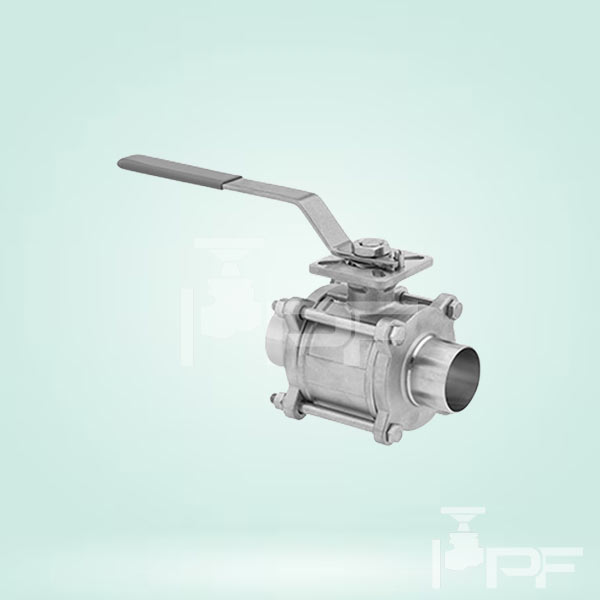

Description – Steel Ball Valve with Butt Weld End
Material – SS304,SS316,Carbon Steel, Hastelloy
Gasket – PTFE, EPDM, Viton
Schedule – SCH 10, 20, 30, 40, 60, 80, 100, 120, 140, 160
Size Range-1/2″, 1″, 1 1/2″, 2″, 2 1/2″, 3″, 4″,6″, 8″
Application – Chemical Manufacturing, Food Equipment, Pharmaceutical, Petrochemical, Steel Manufacturing, Distilling, Food and Beverage, Pulp and Paper Processing, Power Generation, Marine, etc
Operating Type – Manual On/Off Valve with Lockable Handle
Interior Smoothness – 20Ra to 32ra
NOTE : User to verify the compatibility

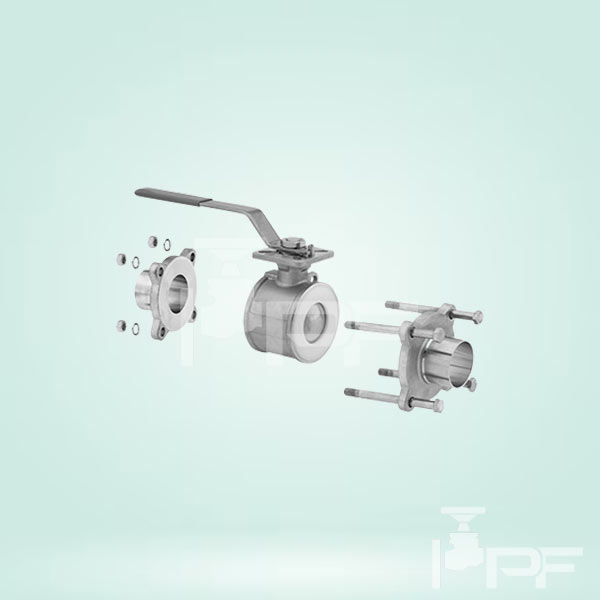

Weld these valves to unthreaded metal pipe for a permanent, flush connection that permits smooth flow through a line. For easy cleaning in food and beverage systems, they have polished internal surfaces and a three-piece bolted body that disassembles inline for access to internal components without cutting welded connections. All valves have a lockable lever handle that can be fixed in place using a padlock (not included). They are full port, so they do not restrict flow.
