Description

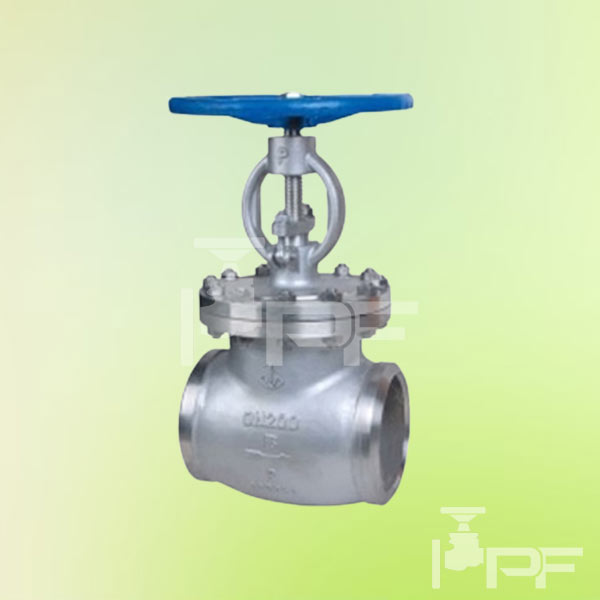

Description – Globe Valve with Butt Weld End
Material – Stainless Steel, Carbon Steel, Hastelloy
Gasket – PTFE, EPDM, Viton
Size Range – 1/2″, 3/4″, 1″, 1 1/2″, 2″, 2 1/2″, 3″, 4″, 6″, 8″
Refer to Pipe Schedule Chart & Flanges Pressure Class
Application – Chemical Manufacturing, Food Equipment, Pharmaceutical, Petrochemical, Steel Manufacturing, Distilling, Food and Beverage, Pulp and Paper Processing, Power Generation, Marine, etc.
Operating Type – Manual On/Off Valve with Handwheel
Interior Smoothness – 20Ra to 32ra
Max. Pressure – 150PSI to 5000PSI
NOTE : User to verify the compatibility
• Manufacturing STD. : BS1873.
• Testing & Inspection STD. : API 598.
• Face To Face : ANSI B 16.10.
• Shell Wall Thickness : ANSI B 16.34.
• Butt Weld Ends : ANSI B 16.25.
