Description

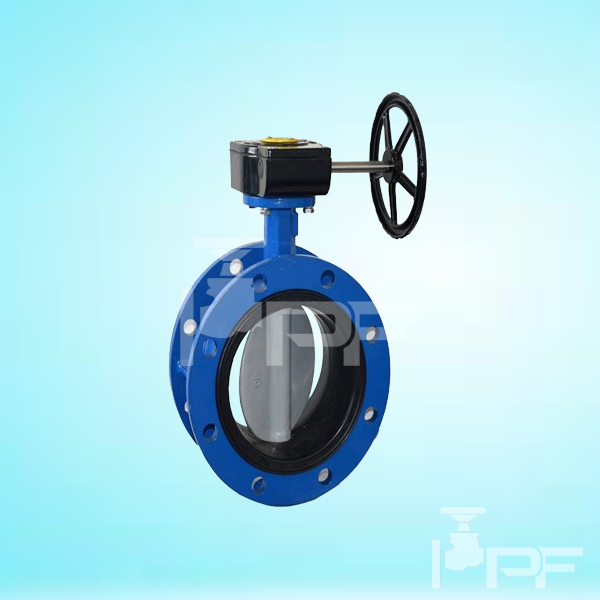

Description – Disc Shaped Double Flange butterfly valve to install along the pipeline’s diameter direction
Material – Ductile Iron, Carbon Steel
Gasket – PTFE, EPDM, Viton
Disk Material – SS304, SS316, Ductile Iron
Size Range – 1″, 1 1/2″, 2″, 2 1/2″, 3″, 4″, 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″, 22″, 24″, 28″, 32″, 36″, 40″, 48″
Pressure Class – 150, 300, 400, 600
Operating Type – Manual Handwheel
Interior Smoothness – 20Ra to 32ra
Application – Chemical Manufacturing, Food Equipment, Pharmaceutical, Petrochemical, Steel Manufacturing, Distilling, Food and Beverage, Pulp and Paper Processing, Power Generation, Marine, etc.
NOTE : User to verify the compatibility
Double flanged butterfly valve features a bonded liner extending over the flanges. The double flange design is suitable for high pressure loading and for use in heavy industry, shipbuilding, severe vacuum applications and water treatment industry like potable water, water treatment and wastewater applications.
Double flanged butterfly valve – a versatile and high-performance solution for fluid control applications. Engineered with precision and crafted from top-quality materials, this innovative valve offers unparalleled performance, durability, and ease of use.
