Description

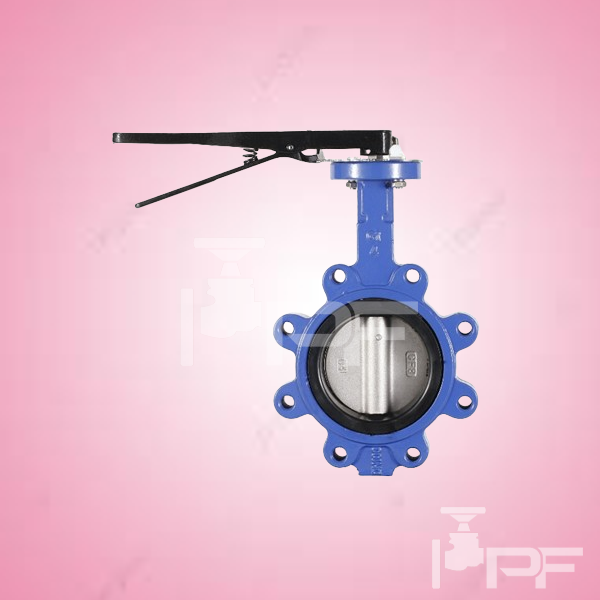

Description – Disc Shaped Lug butterfly valve to install along the pipeline’s diameter direction
Material – Ductile Iron, Carbon Steel
Gasket – PTFE, EPDM, Viton
Disk Material – SS304, SS316, Ductile Iron
Size Range – 1″, 1 1/2″, 2″, 2 1/2″, 3″, 4″, 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″, 22″, 24″, 28″, 32″, 36″, 40″, 48″
Operating Type – Manual Handle with Multiple Locking Position
Interior Smoothness – 20Ra to 32ra
Max. Pressure – 150PSI to 5000PSI
Refer to Pipe Schedule Chart & Flanges Pressure Class
Application– Chemical Manufacturing, Food Equipment, Pharmaceutical, Petrochemical, Steel Manufacturing, Distilling, Food and Beverage, Pulp and Paper Processing, Power Generation, Marine, etc.
NOTE: User to verify the compatibility
