Description

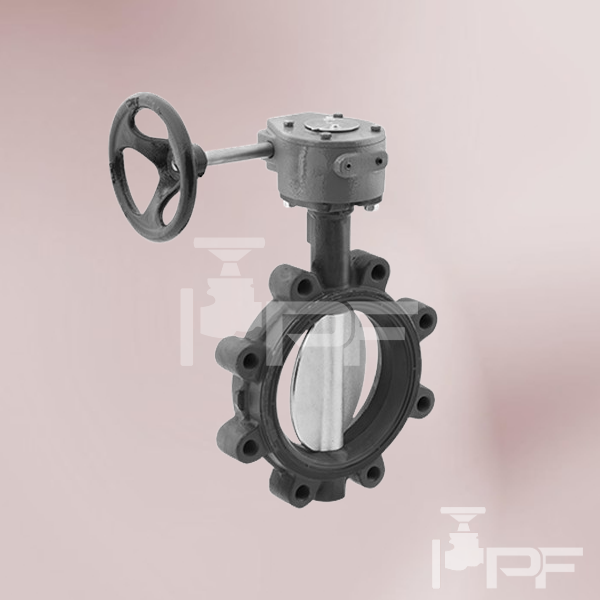

Description – Disc Shaped Lug butterfly valve to install along the pipeline’s diameter direction
Material – Ductile Iron, Carbon Steel
Disk Material – SS304, SS316, Ductile Iron
Gasket – PTFE, EPDM, Viton
Size Range – 1″, 1 1/2″, 2″, 2 1/2″, 3″, 4″, 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″, 22″, 24″, 28″, 32″, 36″, 40″, 48″
Operating Type – Manual Handle with Multiple Locking Position
Interior Smoothness – 20Ra to 32ra
Max. Pressure – 150PSI to 5000PSI
Application – Chemical Manufacturing, Food Equipment, Pharmaceutical, Petrochemical, Steel Manufacturing, Distilling, Food and Beverage, Pulp and Paper Processing, Power Generation, Marine, etc.
NOTE : User to verify the compatibility
Also known as butterfly valves, these bolt to flanges for adjusting and regulating flow in flanged pipelines.
Lug valves can be sandwiched between two flanges or bolted directly to a single flange for servicing one end of the pipeline without depressurizing the other side. They have threaded flange holes with a hole pattern that matches ANSI flanges of the same pipe size.
Wheel handles open and close with multiple turns, providing fully adjustable flow.
