Description

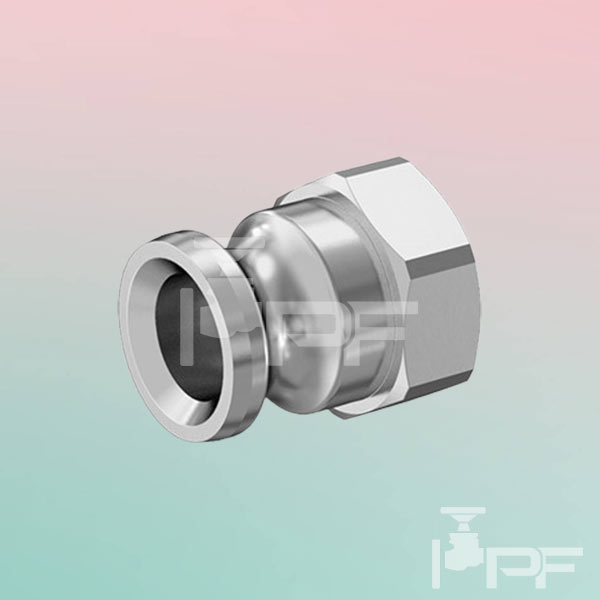

Description -Stainless Steel Male Hose Camlock with Threaded Female End for pipe connection
Material – SS304, SS316
Thread Type – NPT, BSP, BSPT
Interior Smoothness – 20Ra to 32ra
Size Rage – 1″ , 1 1/2″ , 2″ , 2 1/2″ , 3″ , 4″
Application – Chemical Manufacturing, Food Equipment, Pharmaceutical, Petrochemical, Steel Manufacturing, Distilling, Food and Beverage, Pulp and Paper Processing, Power Generation, Marine, etc
NOTE : User to verify the compatibility

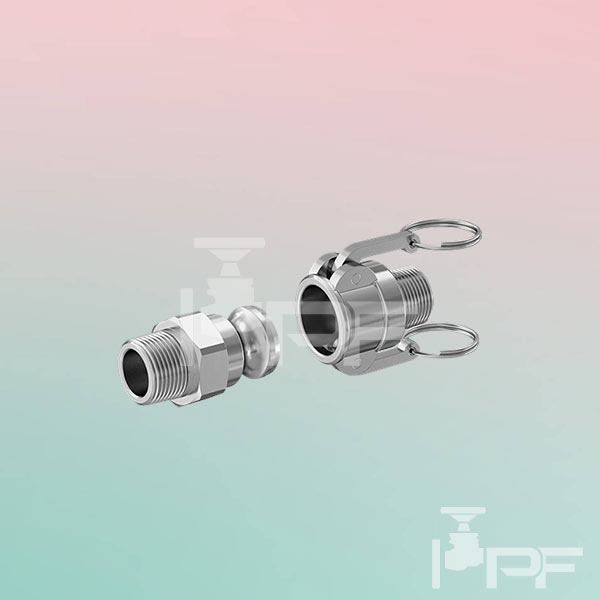

Made of metal, these couplings have better durability than plastic cam-and-groove couplings. A complete coupling consists of a plug and a socket (both sold separately) that allow you to quickly connect and disconnect medium-to large-diameter hose lines. To connect, insert the plug into the socket and press the levers down. The levers fit snugly into the groove on the plug’s body and force the plug against the gasket to form a tight seal. To disconnect, lift both levers and pull out the plug. Couplings are compatible with Andrews, Dixon, Ever-Tite, and PT cam-and-groove couplings.
Plugs with female threaded end are also known as A adapters.
316 stainless steel plugs and sockets have excellent corrosion resistance.
Note: To ensure a correct fit, make sure that the plug and socket have the same coupling size.
Warning: Relieve all pressure before disconnecting the couplings. Do not use cam-and-groove couplings with compressed air or gas.
