Description

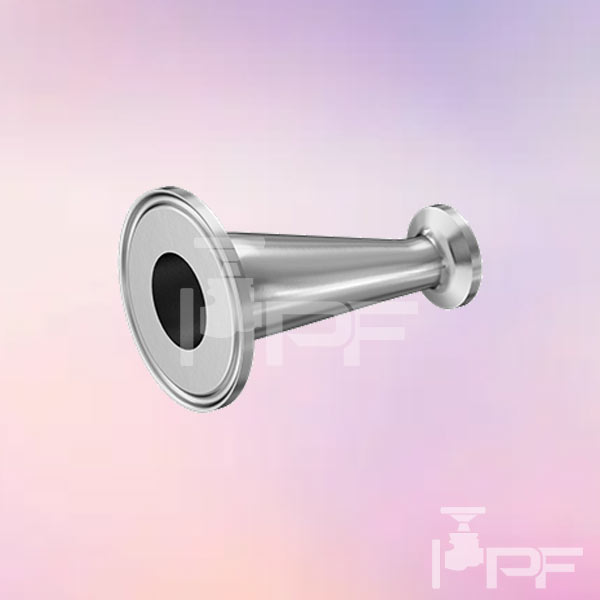

Description – Sanitary to Sanitary Eccentric Reducer
Material – SS304, SS316
Interior Smoothness – 15 to 32Ra
Size Range – 3/4″ to 1/2″ , 1″ to 1/2″ , 1″ to 3/4″ , 1 1/2″ to 1/2″ , 1 1/2″ to 3/4″ , 1 1/2″ to 1″ , 2″ to 1″ , 2″ to 1 1/2″ , 2 1/2″ to 1 1/2″ , 2 1/2″ to 2″ , 3″ to 1 1/2″ , 3″ to 2″ , 3″ to 2 1/2″ , 4″ to 2″ , 4″ to 2 1/2″ , 4″ to 3″ , 6″ to 3″ , 6″ to 4″
Application – Chemical Manufacturing, Food Equipment, Pharmaceutical, Petrochemical, Steel Manufacturing, Distilling, Food and Beverage, Pulp and Paper Processing, Power Generation, Marine, etc.
NOTE : User to verify the compatibility
The smooth finish inside these fittings makes it easy to remove product residue. Also known as aseptic and tri-clamp fittings, they connect with a gasket, a clamp, and another quick-clamp fitting for a fast and easy way to access your line. The pressure rating of the fitting will vary depending on the clamp you choose, and the temperature rating will vary based on the gasket material you choose.
316 stainless steel fittings have excellent corrosion resistance.
3-A certified fittings comply with sanitary standards.
Note: To complete a connection, you’ll need two quick-clamp fittings, a clamp, and a gasket (all sold separately).
Offset straight reducers are also known as eccentric reducers; they connect one pipe to another smaller-diameter pipe and have the centers offset so the line can drain.
