Description

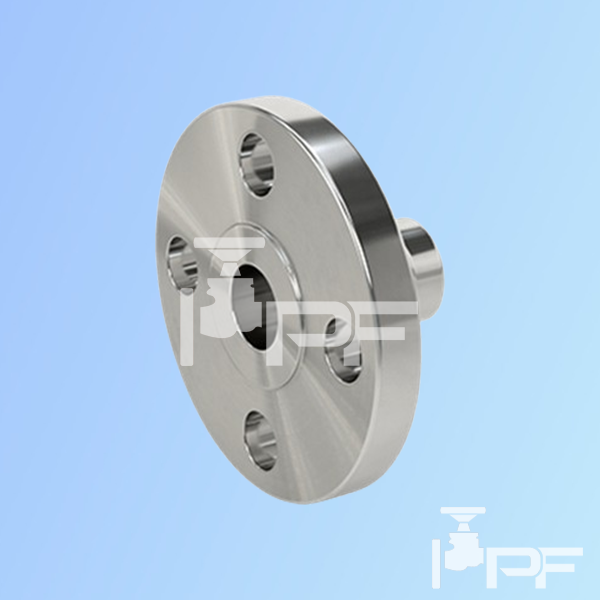

Description -Steel Flange with weld neck connection
Material – 304/316 SS, Hastelloy, Carbon Steel
Pressure Class – 150, 300, 400, 600, 900, 1500, 2500
Schedule – SCH 10, SCH 20, SCH 30, SCH 40, SCH 60, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160
Size Range – 1/2″ , 3/4″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ , 2 1/2″ , 3″ , 3 1/2″ , 4″ , 6″ , 8″ , 10″ , 12″ , 14″ , 16″ , 18″ , 20″ , 24″
Application – Chemical Manufacturing, Food Equipment, Pharmaceutical, Petrochemical, Steel Manufacturing, Distilling, Food and Beverage, Pulp and Paper Processing, Power Generation, Marine, etc
NOTE : User to verify the compatibility
Use these heavy duty forged flanges for high-pressure applications. Bolt two flat-surface flanges or two raised-surface flanges of same size together with a gasket (sold separately) to create an access point in a pipe line.
316 stainless steel flanges have excellent corrosion resistance.
Butt-weld flanges are also known as weld-neck flanges; the flange neck has a beveled end that, when flush to pipe, creates a trough for a strong weld.
